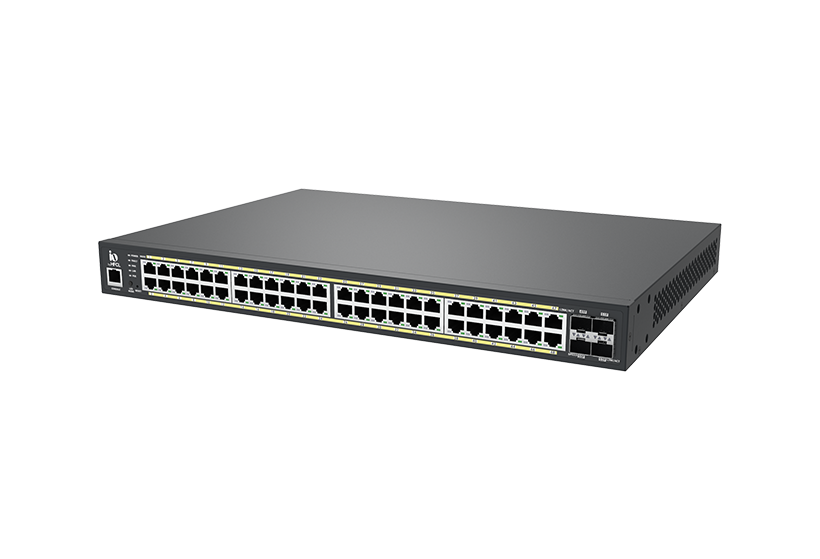

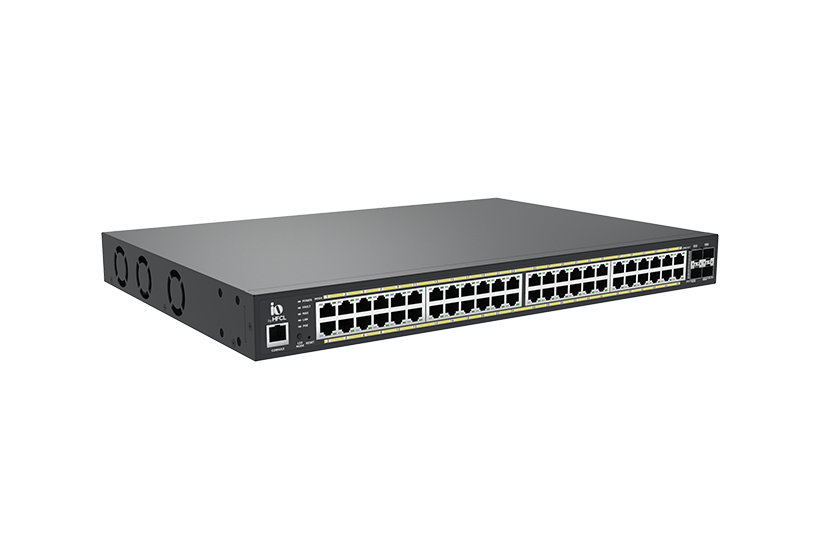

48-Port PoE/PoE+ Switch
HSP-IO-48GE4XS-C1PA
48-Port PoE/PoE+ L2 Managed Switch (48x1G access + 4x1/10G SFP+ uplinks)
Overview
- 48x 10/100/1000 Base-T GbE Ports
- Full-Featured Layer-2 Switching
- 802.3 af/at PoE+ Ready on All Ports with 740W PoE budget
- 176 Gbps Switching capacity
- 4x10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
Switch Ports
- 48x10/100/1000M Base-T PoE/PoE+ Gigabit Access Ports
- 4x1/10G SFP+ Uplink Ports (MSA Compliant) with the flexibility to terminate the connection on copper or fiber-based SFP module
- One Serial Console Port
- Link / Speed / LED Status on All ports
- Reset Button
Industry Standard Management with Automation
- CLI and WebGUI
- Dual Stack (IPv4 and IPv6) Management
- Telnet, SSH and SNMP v1/v2c/v3, RMON, Syslog
- SNTP, TFTP, Port Mirroring
- DHCP Client (IPv4/IPv6) and Relay (IPv4)
Rich L2 Features
- Support 4094 VLAN IDs, 256 Active VLANs, 802.1q VLAN tagging, GVRP, 32K MAC Table
- L2 Loop Avoidance STP/RSTP, MSTP
- Multicast - ACL Filtering, IGMP Snooping, MLD Snooping
- LACP based LAG and Static LAG, LLDP
- QoS Packet Classifier and Scheduling (SP, WRR), Class of Service, DSCP
- Jumbo MTU upto 9216 Bytes
PoE Features
- PoE Budget: 740W
- Per port PoE configuration
Switching / Forwarding Capacity
- Switching Capacity: 176 Gbps
- Forwarding Capacity: 130.944 Mpps
Power Supply Options
- Integrated Single AC Power Supply (100-240 VAC)
Design Parameters
- Operating Temperature: 0°C to 40°C
- 1U fixed configuration
- Humidity: 5% to 95% non-condensing
Application
- Campus Networking
- Smart City
- Wi-Fi
- CCTV
- Radio Aggregation (Telecom network)
