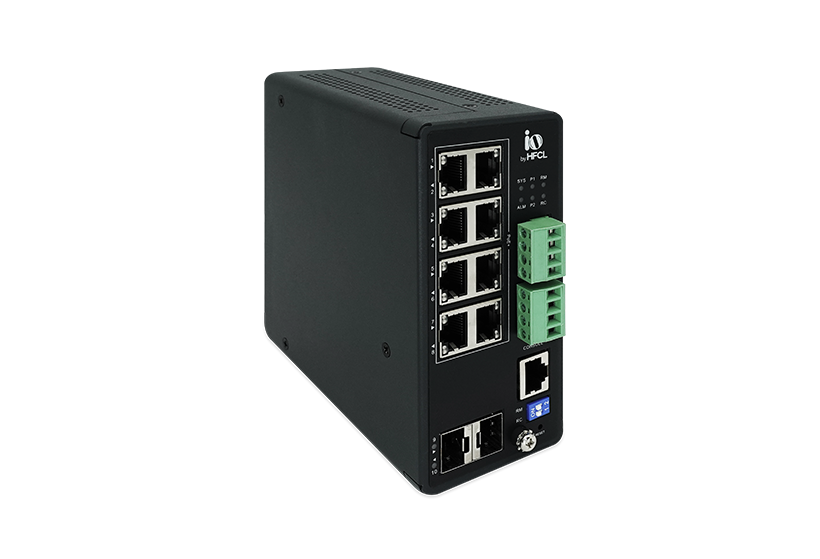

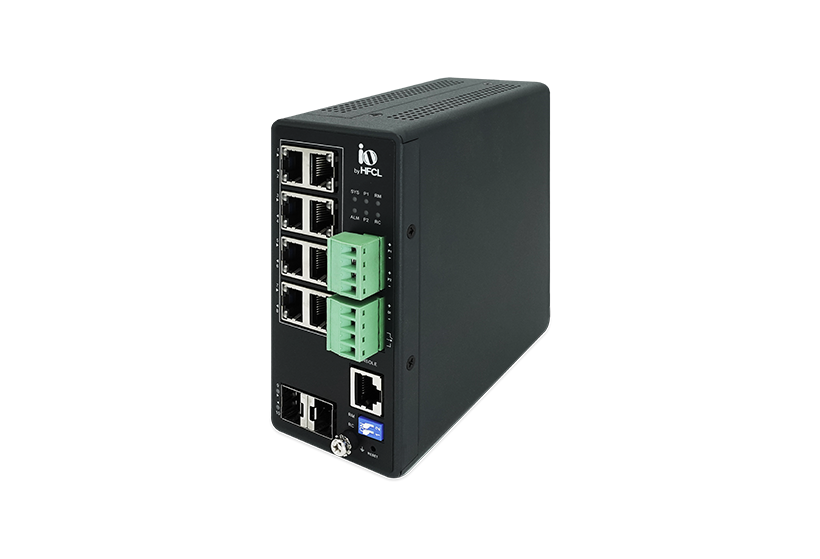

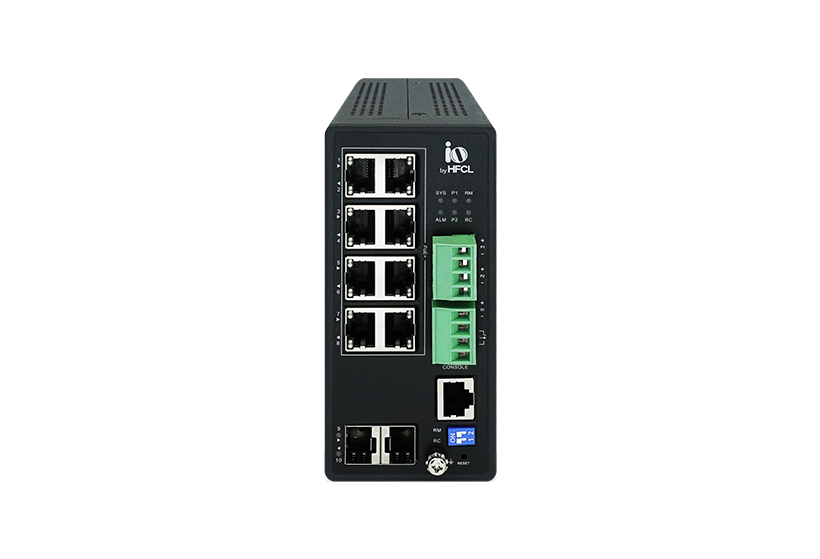

8-Port PoE/PoE+ L2 Industrial Switch
HSP-IO-8GE2S-I2PDH+
(8x1 GE PoE+ Access + 2x1G SFP Uplinks)
Overview
- 8x10/100/1000 Base-T PoE+ Gigabit Access Ports
- 2x1G SFP Uplink Ports (MSA Compliant)
- Temperature hardened design (-40°C to 75°C operating range)
- Wire speed Non-Blocking Architecture
- Dual Stack (IPv4 and IPv6) Management
- DIN rail mountable
- Advanced L2 features with static routing capabilities
- Comprehensive security features
- PoE+ support with 240W budget
Rich L2/L3 Features
- Support 4094 VLAN IDs, 8K MAC Table
- L2 Loop Avoidance STP/RSTP, MSTP, Loopback detection, UDLD
- Multicast - IGMP v1/v2/v3 Snooping, IGMP filtering, IGMP proxy, IGMP Querier, MLD Snooping, MVR, IGMP subscription limit setting (per port setting)
- LACP based LAG and Static LAG
- QoS with up to eight priority queues
- DHCP option 66, 67, 82
- DHCP auto config
- IP Subnet based VLAN
- Protocol based VLAN
- QinQ
- Guest VLAN and Voice VLAN
- IPv4 / IPv6 Dual Stack
- IPv6 ready logo
- Storm control
- Static Routing
- DHCP Server
Security Features
- L2/L3/L4 ACL with extended features
- 802.1X EAP Authentication, MAC Authentication, Radius and Local Authentications
- 802.1X Port Security (MAC based)
- 802.1X Dynamic VLANs (Guest VLAN)
- 802.1X Accounting
- DHCP snooping, Dynamic ARP Inspection
- Storm Control - Broadcast, Multicast and Unknown Unicast
- HTTPs and SSL
- Secure boot
- IP Anti Spoofing / IP Source Guard
- MAC Anti-Spoofing
- IP-MAC DHCP Static Binding on a port
- PKI Key (Create, Delete), PKI Certificates (Loading, Deleting)
- Sticky MAC
- Loop Protection
Management and Automation
- SSH, Telnet and Web-GUI
- SCP Client, TFTP Client and SFTP Client
- NTP Client
- SNMP v1, v2c and v3
- Ping (ICMP), Traceroute, L2 Traceroute
- TDR (Time domain reflectometry) for cable diagnostics
- DNS resolver / Client
- sFlow
- DHCPv4 Server and Client
- DHCPv6 Client
- DHCP Relay
- Syslog
- Port Mirroring
- Event Scheduler
- LLDP and LLDP-MED
- SMTP
- Password settings
QoS Features
- QoS Packet Classifiers
- Traffic Marking
- Traffic Scheduling (SP, WFQ and CIR/EIR)
- Ingress Policing / Rate Limiting
- Traffic Shaping
- Congestion Avoidance
- Queue scheduling: SP, WRR, SP+WRR
- Class of Service
- DSCP
Performance
- Switching Capacity: 20 Gbps
- Forwarding Capacity: 14.88 MPPS
- MAC Table: 8K
- VLAN IDs: 4094
- Jumbo Frame Support: Up to 9600 Bytes
Ports
- Access Ports: 8x10/100/1000 Base-T PoE/PoE+
- Uplink Ports: 2x1G SFP (supports both fiber and copper SFP modules)
- Console Port: 1x Serial
Power
- Power Supply: Integrated Dual DC Power Supply (54W)
- PoE Budget: 240W
- PoE Standard: IEEE 802.3at (PoE+)
Advanced Features
- IEEE 802.3ah OAM
- IEEE 1588 v2 PTP
- ERPS
Environmental
- Operating Temperature: -40°C to 75°C
- Humidity: 5% to 95% non-condensing
- Altitude: Up to 3000 Meters (10,000 Feet)
Physical
- Dimensions (WxHxD): 62 x 135 x 130 mm
- Mounting: DIN rail
Application
- Industrial Automation
- Smart City Infrastructure
- Outdoor Surveillance Systems
- Transportation and Traffic Management
- Harsh Environment Deployments
