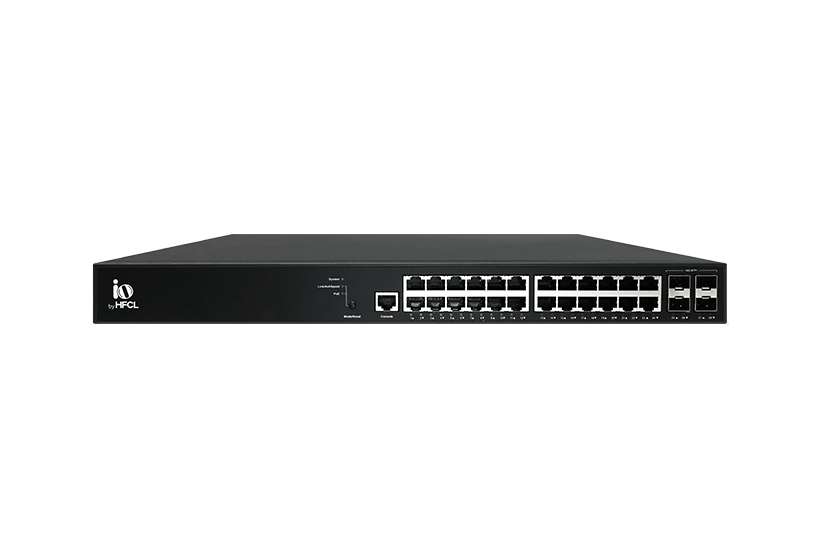

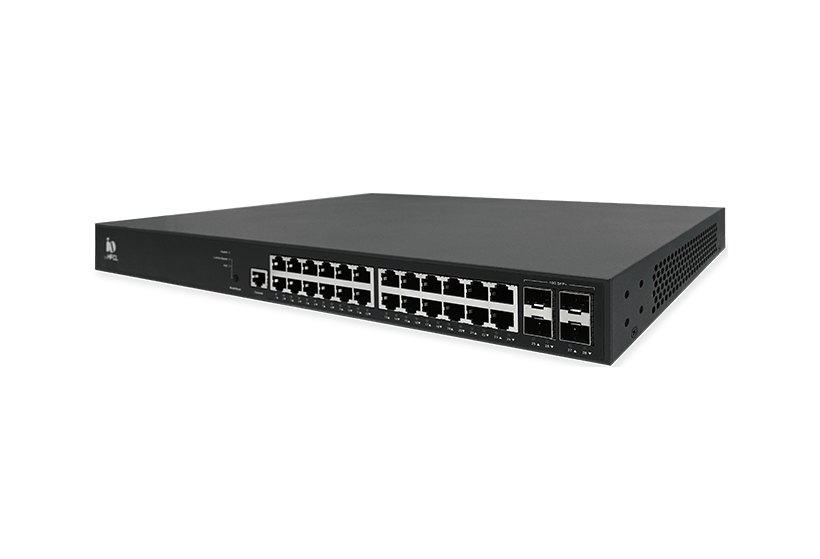

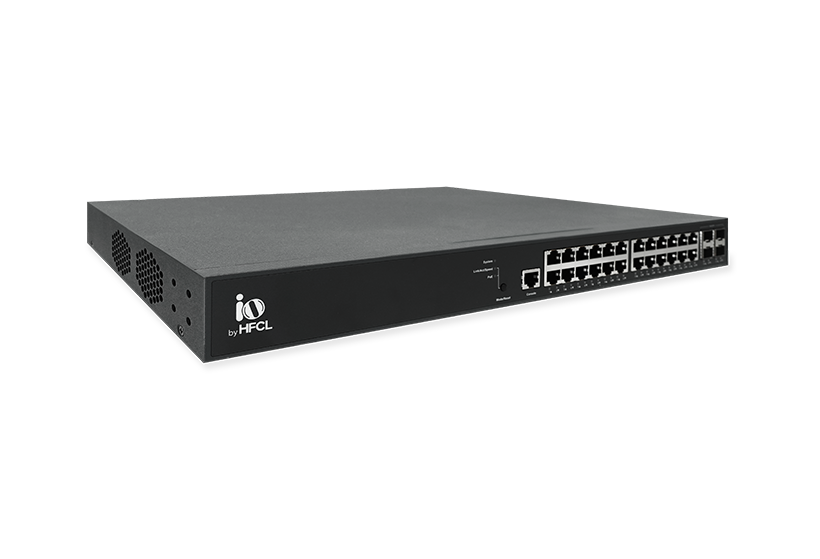

24-Port Non-PoE L2 Switch

24-Port Non-PoE L2 Switch

HSP-IO-24GE4XS-C2A+

(24x1G Access + 4x1/10G SFP+ Uplinks)

Overview

  • Fully Managed L3 Switch with wire speed Non-Blocking Architecture
  • All Gigabit Ethernet Access Ports with 10G Uplinks in a fixed 1U configuration
  • 24 x 10/100/1000 Base-T Non-PoE Gigabit Access Ports
  • 4 x 1/10G SFP+ Uplink Ports (MSA Compliant) with flexibility to terminate on fiber or copper
  • Up to 128 Gbps Switching capacity and up to 95.232 MPPS of Full Duplex Throughput
  • Comply with Energy Efficient Ethernet Standards (802.3az)
  • Suitable as access or aggregation switch in Enterprise/Campus/Telco Environment
Rich L2/L3 Features

Rich L2/L3 Features

  • Support 4094 VLAN IDs, 32K MAC Table
  • L2 Loop Avoidance: STP/RSTP, MSTP, Loopback detection, UDLD, and ERPS
  • Multicast: IGMP v1/v2/v3 Snooping, IGMP filtering, IGMP proxy, IGMP Querier, MLD Snooping, MVR, IGMP subscription limit setting (per port setting)
  • LACP based LAG and Static LAG
  • QoS with up to eight priority queues
  • DHCP options: 12, 66, 67, 82, 129, 150
  • DHCP auto config
  • IEEE 1588 v2
  • IP Subnet based VLAN
  • Protocol based VLAN
  • QinQ
  • Guest VLAN and Voice VLAN
  • IPv4 / IPv6 Dual Stack
  • IPv6 ready logo
  • Storm control
  • OSPFv2, v3
  • Static Routing
  • RIPv1/v2
  • ECMP

Security Features

Security Features

  • L2/L3/L4 ACL with extended features
  • 802.1X EAP Authentication, MAC Authentication, Radius and Local Authentications
  • 802.1X Port Security
  • 802.1X Dynamic VLANs (Guest VLAN)
  • 802.1X Accounting
  • DHCP snooping, Dynamic ARP Inspection
  • Storm Control - Broadcast, Multicast and Unknown Unicast
  • TACACS AAA and RADIUS AAA
  • 802.1X MAC access bypass, 802.1X dACL, 802.1X CoA
  • Secure boot
  • IP Anti Spoofing / IP Source Guard
  • MAC Anti-Spoofing
  • IP-MAC DHCP Static Binding on a port
  • PKI Key (Create, Delete), PKI Certificates (Loading, Deleting)
  • Sticky MAC

Management and Automation

Management and Automation

  • SSH, Telnet and Web-GUI
  • SCP Client, TFTP Client and SFTP Client
  • NTP Client
  • SNMP v1, v2c and v3
  • Ping (ICMP), Traceroute, L2 Traceroute
  • TDR (Time domain reflectometry) for cable diagnostics
  • DNS resolver / Client
  • sFlow
  • DHCPv4 Server and Client
  • DHCPv6 Client
  • DHCP Relay
  • Syslog
  • Port Mirroring and VLAN Mirroring (Flow mirror)
  • Ethernet OAM (802.3ah)
  • Event Scheduler
  • SMTP
  • Password settings

QoS Features

QoS Features

  • QoS Packet Classifiers
  • Traffic Marking
  • Traffic Scheduling (SP, WFQ and CIR/EIR)
  • Ingress Policing / Rate Limiting
  • Traffic Shaping
  • Congestion Avoidance
  • Queue scheduling: SP, WRR, SP+WRR
  • Class of Service
  • DSCP

Technical Specifications

Technical Specifications

  • Switching Capacity: 128 Gbps
  • Forwarding Capacity: 95.232 MPPS

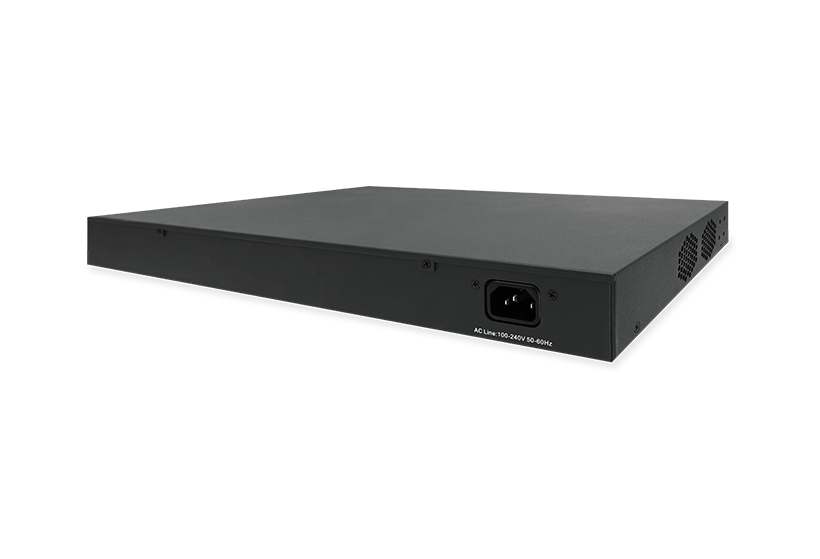

  • Power Supply: Integrated Single AC Power Supply (100-240 VAC)
  • Dimensions (WxHxD): 442 x 44 x 211 mm
  • Operating Temperature: -5°C to 50°C

Switch Ports

Switch Ports

  • 24 x 10/100/1000 Base-T Access Ports
  • 4 x 1/10G SFP+ Uplink Ports
  • One Serial Console Port
  • Link / Speed / LED Status on All Ports

Applications

  • Enterprise Networks
  • Campus Networks
  • Telco Environments
  • Data Centers
