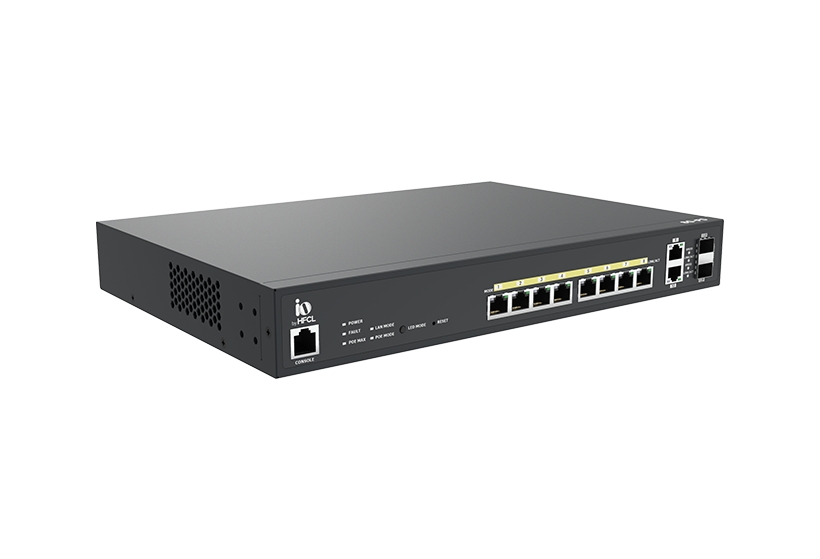

8-Port PoE+ Switch

Switch Ports

• 8x10/100/1000 Base-T PoE+ Gigabit Access Ports
• 2x1G RJ45 and 2x1G SFP Uplink Ports (MSA Compliant) provides flexibility to terminate either use fiber of copper cable
• One Serial Console Port
• Link / Speed / LED Status on All ports
• Reset Button

Switching / Forwarding Capacity

• Switching Capacity 24 Gbps
• Forwarding Capacity 17.865 MPPS

PoE Features

1. PoE Budget 130W
2. Per port PoE configuration

Power Supply Options

• Integrated Single AC Power Supply (100-240 VAC)

Rich L2 Features

• Support 4094 VLAN IDs, 25Q Active VLANs, 802.1q VLAN tagging, GVR, 8K MAC Table
• L2 Loop Avoidance ST/RST, MST
• Multicast - ACL Filtering, IGM Snooping, MLD Snooping
• LAC based LAG and Static LAG, LLD
• QoS - Packet Classifier and Scheduling (S, WRR), Class of Service, DSCP
• Jumbo MTU upto 9216 Bytes

Security Features

• L2/L3/L4 ACL
• 802.1X Port Authentication with RADIUS
• DHC snooping, IP Source Guard
• Port Security, IP-MAC Static binding
• Storm Control - Broadcast, Multicast and Unknown Unicast

Industry Standard Management with Automation

• CLI and WebGUI
• Dual Stack (IPv4 and IPv6) Management
• Telnet, SSH and SNMP v1/v2c/v3, RMON, Syslog
• SNTP, TFTP, Port Mirroring
• DHCP Client (IPv4/IPv6) and Relay (IPv4)

Design Parameters

• Operating Temperature: 0°C to 40°C
• 1U fixed configuration with integrated fan
• Humidity: 5% to 95% non-condensing
